This package includes the plans for "Graf" including:
Deluxe Stand-Up Loft for the Master Bedroom
Gooseneck Bonus Room (2nd Bedroom or Office)
Crawl-in Loft for 3rd Sleeping area or Storage
Full-Size Kitchen
Large Living Area
Full-Size Bathroom

Purchsing plans for homes that have been built in reality means fewer unexpected adjustments that hold up your build!
When a home is built for the first time, it inevitably turns out different from the original plans in some way so adjustments need to be made on the fly. We have worked out those kinks for you when we built this home 2022.

#IRTHome34 "Graf" a 43' Homesteader Deluxe Gooseneck - The deluxe master loft includes a wrap-around landing with large wardrobes & a door to the gooseneck office that closes.
Loft walls have openings for maximum venillation.

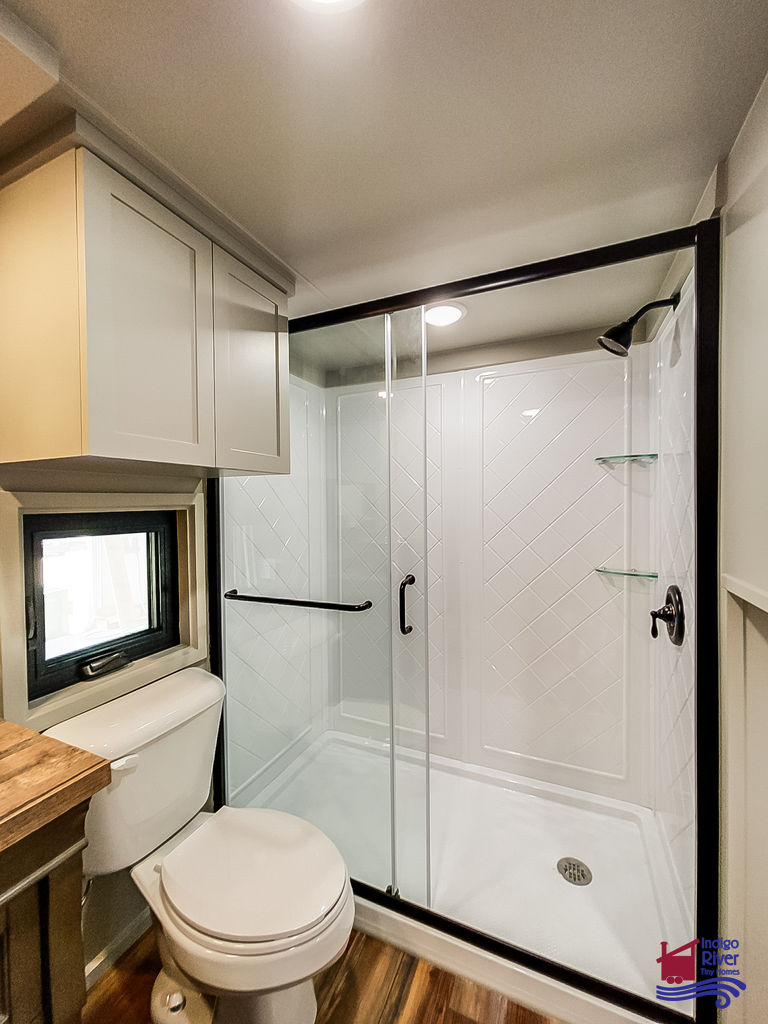

The large bathroom has a full-size shower + washer/dryer hook-ups in the laundry cove.
Kitchen features a full cook-top, oven, diswasher, apartment sized fridge and tons of storage. (Configure the kitchen however you like!)
The staircase is easy to climb & holds even more storage.
The living area in "Graf” is open with plenty of room for living room furniture & another desk/workspace.

See the 2D Floor plan & the photos of this home for more details.

This set of plans includes:
Our lead builder/designer's contact info for a quick call or email if you have questions The following files for the LuWan Tiny Home RV #IRTHome34

2D Floor Plan with dimensions for placement of all Interior Features & Window Placement
Exterior Elevations
Spread sheet file with: ~ Complete Materials & Components List ~ "Cut Sheet" with the amount of lumber needed & the measurements for cutting the lumber before you begin assembling the framing ~ Build Budget with calculation formulas already set up
Building Process Check List: every step from trailer prep to finish-out in the proper order
Window & Door Schedule
Framing Plans for the Exterior Walls & Roof Trusses
Framing Plans for the Interior Walls & Stand Up Loft
Dimensions for building Storage Staircases
Trailer specs (not drawings) that you can give to any experienced Tiny House Trailer manufacturer

This purchase includes everything in the plans that Indigo River uses to guide our builds. We add Plumbing & Electrical after the shell is built by measuring & marking off the locations for outlets & fixtures on the actual shell so we usually don't draw plans for these aspects.

We recommend hiring a licensed plumber & electrician to install these components once the shell is completed.
(Most experienced plumbers & electricians will have their own ways of running the pipes & wiring so you probably won't need drawings for plumbing & electrical if you are using a professional sub-contractor.)

Optional Add-Ons:
If your plumber or electrician wants drawings for these aspects you can purchase 3 extra sets of drawings as add-ons:
~ Fresh water inlet & lines ($99)
~ Sewage lines & grey/black water drain placement ($99)
~ Electrical Placement for all outlets, ceiling & wall mount lights, light switches and appliances including combo Washer/Dryer hook ups ($99)
Contact us if you have any questions before purchase or if you need add-ons. Thanks for supporting a Veteran owned & family operated small business!
